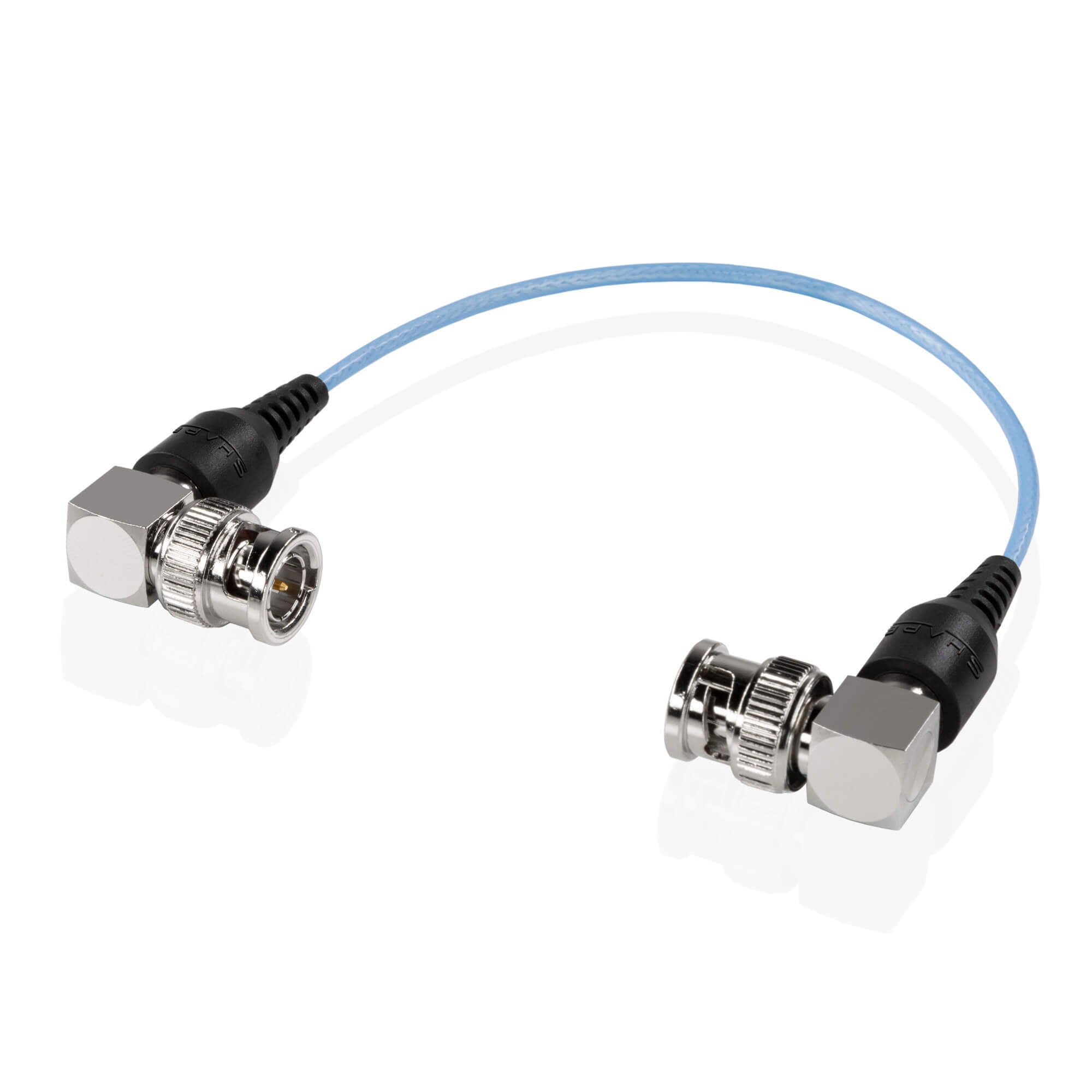

Name: Skinny 90-degree BNC cable 6 inches blue
Brand: Shape
SKU: SKI6B
Price: 24.00 EUR
Availability: InStock

Skinny 90-degree BNC cable 6 inches blue

€24,00

Skinny 90-degree BNC cable 6 inches blue

€24,00 incl. VAT

€20,00 excl. VAT

SKI6B

• Thin 6-inch 90-degree male to male BNC cable for serial data and video signals.
• Outer diameter of 2.5 mm with a thin gauge design.
• Impedance of 75 ohms and frequency range from DC to 1 GHz.
• VSWR maximum of 1.2, suitable for 3G-SDI equipment connectivity.

In stock

Cable Design and Compatibility

This skinny BNC cable features a 90-degree male to male configuration with a thin gauge outer diameter of 2.5 mm, optimized for serial data and video signal transmission. It is 3G-SDI rated and supports connection between SDI equipment.

Electrical Properties

The cable has an impedance of 75 ohms, operates from DC up to 1 GHz frequency, and maintains a voltage standing wave ratio (VSWR) max of 1.2, ensuring signal integrity for professional use.

Physical Dimensions

The cable measures 6 inches (15.24 cm) in length with a thickness of 0.10 inches (0.25 cm) in both width and height, providing a slim profile suitable for tight installations.

Length : 6 inches
Outer Diameter : 2.5 mm
Connector Type : 90 : degree male BNC to 90 : degree male BNC
Impedance : 75 ohms
Frequency Range : DC to 1 GHz
VSWR : 1.2 MAX
