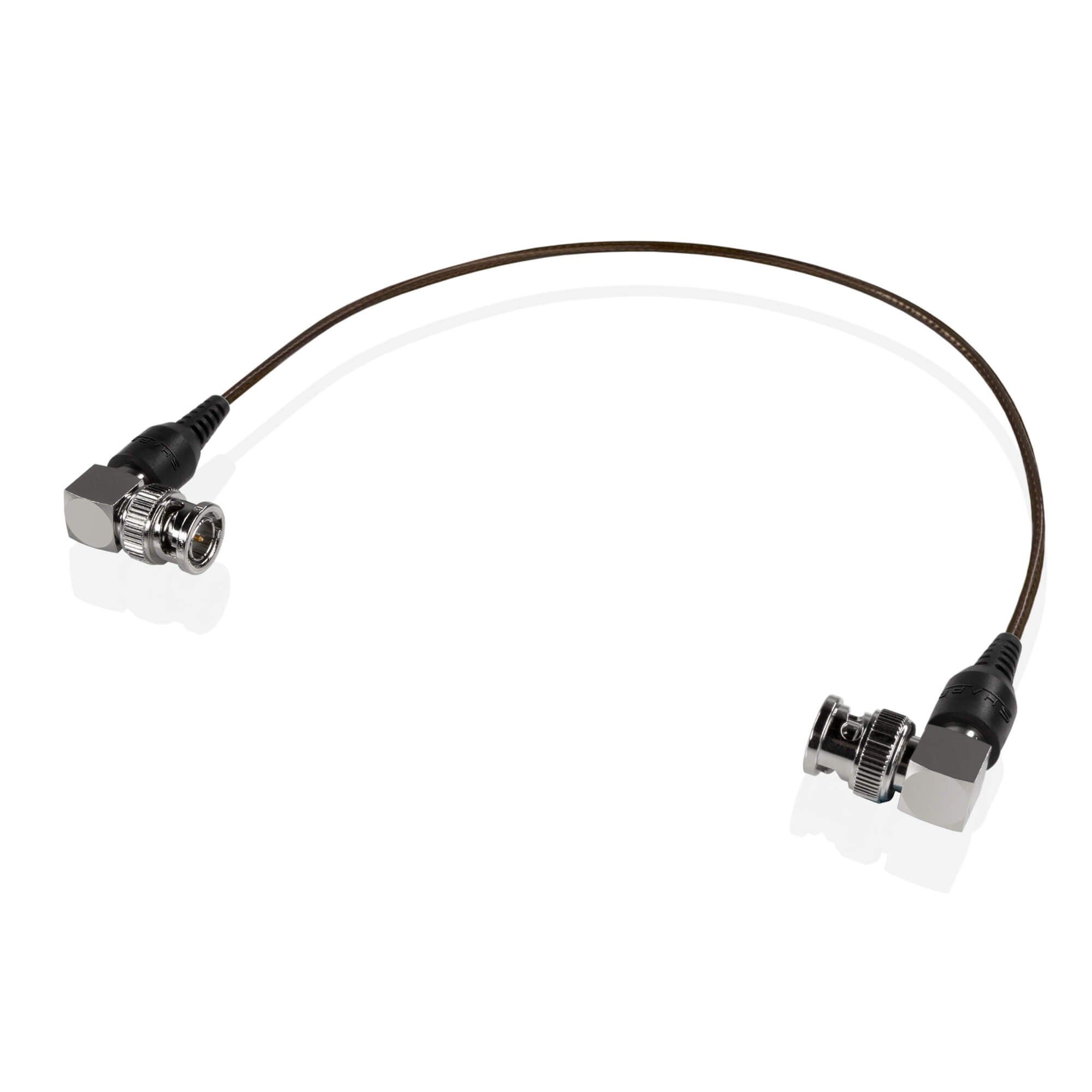

Name: Skinny 90-degree BNC cable 12 inches black
Brand: Shape
SKU: SKI12N
Price: 25.20 EUR
Availability: OutOfStock

Skinny 90-degree BNC cable 12 inches black

€25,20

Skinny 90-degree BNC cable 12 inches black

€25,20 incl. VAT

€21,00 excl. VAT

SKI12N

• Thin and high-quality 90-degree male to male BNC cable.
• Supports transfer of both serial data and video signals.
• Outer diameter of 2.5 mm suitable for compact setups.
• Impedance of 75 ohms and frequency range DC to 1 GHz.

Out of stock

Design and Build

The SHAPE Skinny 90-Degree BNC Cable features a slim profile with a 2.5 mm outer diameter, allowing compatibility with various professional video components while maintaining signal integrity.

Technical Specifications

This cable supports the transmission of serial digital interface (SDI) signals, is 3G-SDI rated, and provides an impedance of 75 ohms and a maximum VSWR of 1.2 for frequencies up to 1 GHz.

Compatibility

It is compatible with HD cameras, gimbals, monitors, electronic viewfinders (EVF), antennas, and SDI wireless transmitter/receiver sets, making it suitable for diverse professional video equipment.

Cable Length : 12 inches
Cable Diameter : 2.5 mm
Connector Type : 90 : degree male to male BNC
Impedance : 75 ohms
Frequency Range : DC to 1 GHz
VSWR : 1.2 MAX
