Name: 4K-12G sdi coaxial cable 24 inches 90 degree connectors
Brand: Shape
SKU: 12G24
Price: 113.40 EUR
Availability: InStock

4K-12G sdi coaxial cable 24 inches 90 degree connectors

€113,40

4K-12G sdi coaxial cable 24 inches 90 degree connectors

€113,40 incl. VAT

€94,50 excl. VAT

12G24

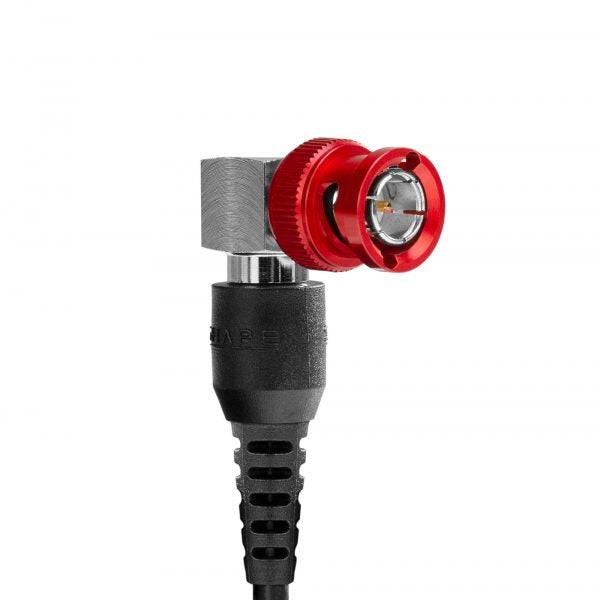

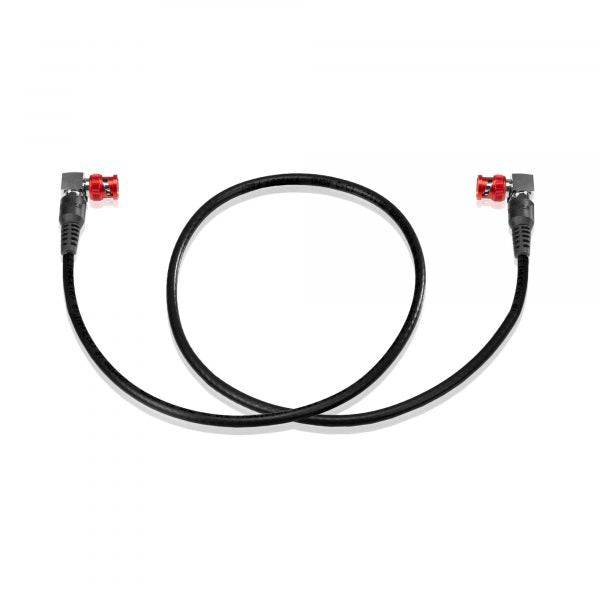

• High-quality 90-degree Male BNC to 90-degree Male BNC shielded cable.
• Designed to record and transfer video signals including 12G 4K ProRes raw.
• Cable length is 24 inches (60.96 cm) with a thin gauge outer diameter of 0.159 inches.
• Impedance of 75 ohms and frequency range from DC to 12 GHz.

In stock

Design and Construction

The cable features a 4 mm diameter and 90-degree female-to-female BNC connectors, ensuring compatibility with various professional video equipment.

Performance and Compatibility

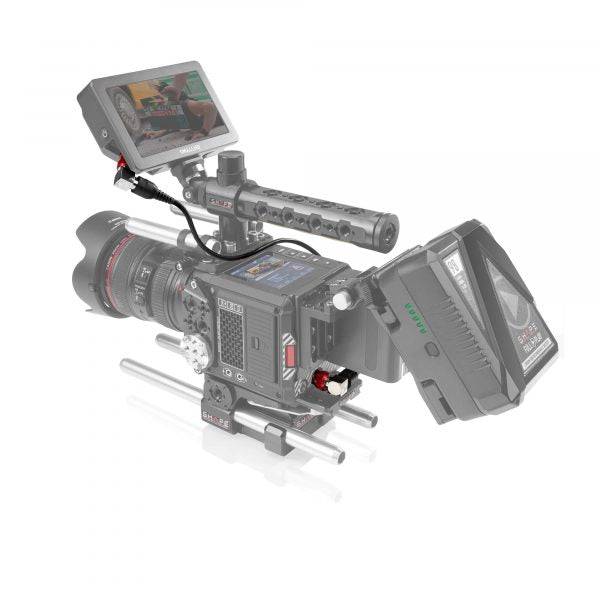

It supports 12G-SDI/4K video applications with extended bandwidth for high-quality signal transmission, suitable for HD cameras, gimbals, monitors, EVFs, antennas, and SDI Wireless TX/RX sets.

Length : 24 in (60.96 cm)
Outer Diameter : 0.159 in (4 mm)
Impedance : 75 ohms
Frequency Range : DC to 12 GHz
VSWR : 1.5 MAX
Connector Type : 90 : degree Male BNC to 90 : degree Male BNC
